Canyon Ridge® Carriage House (5-Layer)
Insulated Carriage House Garage Doors
Add character and charm to your home with Clopay's Canyon Ridge® Carriage House (5-Layer) garage door. Enjoy the authentic look of swing-out coach house doors paired with the modern-day functionality of upward operation. Not only beautiful, these doors provide quiet operation and energy efficiency for years to come.
Overview
Clopay Canyon Ridge® Carriage House (5-Layer) garage doors take inspiration from the coach house designs of yesteryear and bring them to life with today's technology. These doors are constructed with steel for strength and durability, and molded composite materials for beauty and realism. The overlay material is molded from real wood boards to reproduce the unique grain patterns and textures of those species.
These low maintenance, faux wood doors are constructed with moisture-resistant, wood grain composite overlays and can be factory stained or painted in 7 colors, including black or slate. You can even combine the finishes for a truly unique look. These doors feature:
- 5-layer construction: steel + insulation + steel + composite cladding + composite overlay.
- Faux wood-look composite cladding and overlay materials are molded from actual wood pieces to reproduce the natural texture and intricate grain patterns of the species they emulate.
- Colors include: Walnut, Dark, Medium, Slate, Black, White and Primed. (Additional Options)
- 2" Intellicore® polyurethane insulation with a thermal break. R-Value of 20.4.
- WINDCODE® door reinforcement product available for high wind load applications. (More Details)
Environmental Assurance
Clopay doors are compliant with environmental laws and regulations. Clopay doors do not contain HFCs. All Clopay doors are compliant with:
- California SB 1013
- Washington HB 1112 – Hydrofluorocarbon Greenhouse Gas Emissions
- Canadian regulations amending the ozone-depleting substances and halocarbon alternatives regulations
- New Jersey A-5583/S-3919 – Greenhouse Gas Bill
Learn More In Our Buying Guide
Door Designs
SERIES 1

DESIGN 01

DESIGN 11

DESIGN 12

DESIGN 13
SERIES 2

DESIGN 21

DESIGN 22

DESIGN 23
SERIES 3

DESIGN 31

DESIGN 32

DESIGN 33

DESIGN 34

DESIGN 35

DESIGN 36

DESIGN 37

DESIGN 38
For more information regarding construction options per panel style, click here
Top Sections
SERIES 1 & 2 SOLID

TOP11

TOP12

TOP13

ARCH1
SERIES 1 & 2 WINDOW DESIGNS

REC11

REC13

REC14

SQ23

SQ24

ARCH1

ARCH3

ARCH4

ARCH13

ARCH14
DOUBLE TOP SECTIONS

ARC1A - SOLID (Double Door)

ARC1A - WINDOW (Double Door)

ARC3A - WINDOWS (Double Door)

ARC4A - WINDOWS (Double Door)

ARC13A - WINDOWS (DOUBLE DOOR)

ARC14A - WINDOWS (DOUBLE DOOR)
Specialty Glass Options

SEEDED

RAIN

FROSTED

OBSCURE
Material Options
COMPOSITE OVERLAY MATERIALS

Clear Cypress

Mahogany
COMPOSITE CLADDING MATERIALS

Clear Cypress

Mahogany

Pecky Cypress
Hardware Designs

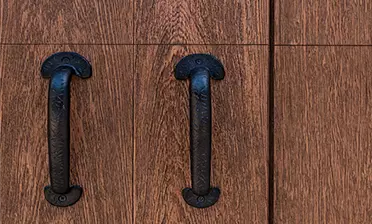

HANDLES

SPADE LIFT HANDLES
(included)

SPEAR LIFT HANDLES

COLONIAL LIFT HANDLES

DECORATIVE LIFT HANDLES

RING DOOR KNOCKER
.webp)
ESCUTCHEON PLATE(S)

TWISTED "L" HANDLES
HINGES

SPADE STRAP HINGE

SPEAR STRAP HINGE

COLONIAL STRAP HINGE
PLATES

SPADE STEP PLATE

SPEAR STEP PLATE

COLONIAL STEP PLATE
Clopay Canyon Ridge® Carriage House (5-Layer) garage doors are built five layers strong. The faux wood-look composite overlay and cladding surface are low maintenance, durable and won't rot, warp, or crack.
Garage doors featuring Intellicore® insulation technology represent the ultimate smart choice for homeowners. Clopay’s Intellicore® is a proprietary polyurethane foam that is injected into a garage door, expanding to fill the entire structure. The result is a door with incredible strength, energy efficiency, and durability. (Click for details)
- Door sample shown in Walnut Finish.
- Replaceable vinyl bottom weather seal in rust free aluminum retainer helps protect against the elements.
- High performance nylon ball bearing rollers help ensure smooth, long-lasting, quiet operation.
- Heavy-duty 14 gauge steel hinges and brackets for smooth and worry-free operation.
- Window grilles are removable for easy cleaning.
- Safe-T-Bracket® - Prevents serious injury that could occur if the bottom bracket were removed with the garage door closed and under tension.
- Product complies with 2015 IECC air infiltration requirement of 0.40 cfm/ft2 or less (IECC, Section C402.5.2)
Color Options

MEDIUM FINISH

DARK FINISH

WALNUT FINISH

SLATE FINISH

BLACK FINISH*

WHITE FINISH*

PRIMED(NO FINISH)

BRONZE*

CHARCOAL*
*Available on select models. For more information regarding color availability, click here.
Two-tone option available. One color for the base layer (steel) and one color for the top layer (composite overlay).
Custom color available through ColorBlast® program.
